Aug 19, 2017
 #9
avatar+2236
+4

\(\text {Sir Alan's presentation in LaTeX}\\ \tiny \text {Reproduced verbatim (as much as practicable) with corrections from listed errata. }\\ \text { }\\ \small \text {definition: } \hspace{25 mm} years : = 315000000 {{\mkern 1mu\cdot\mkern 1mu}} s\\ \small \text {half-life: } \hspace{28 mm} \tau: =3{{\mkern 1mu\cdot\mkern 1mu}} years\\ \small \text {initial isotope power: } \hspace{6 mm} Q_0=100{{\mkern 1mu\cdot\mkern 1mu}}W\\ \text{ }\\ \small \text {isotope power as } \\ \small \text {a function of time: } \hspace{10 mm} Q(t): = Q_0{{\mkern 1mu\cdot\mkern 1mu}}e^{-ln(2)\cdot(\frac{t}{\tau})}\\ \small \text {plate area: } \hspace{22 mm} A: = 9{{\mkern 1mu\cdot\mkern 1mu}} mm^2\\ \small \text {plate distance: }\hspace{16 mm} x: = 5 {{\mkern 1mu\cdot\mkern 1mu}} mm\\ \)

\(\small \text {power received at plate } \\ \small \text {as a function of time: } \hspace{9 mm} P(t): = \frac{A \cdot Q(t)}{x^2}\\ \small \text {beginning of third year: } \hspace{9 mm} t_1: = 3 {{\mkern 1mu\cdot\mkern 1mu}} years\\ \small \text {middle of eighth year: } \hspace{12 mm} t_2: = 7.5\; years\\ \small \text { }\\ \small \text {total ENERGY received: } E:= \int_{t_1}^{t_2} P(t) \; dt\\ \text{ }\\ \hspace{55 mm} E=\frac{A}{x^2}\cdot Q_0 \cdot \frac{\tau}{ln(2)} \cdot (e^{\frac{ln(2)\cdot t_2}{\tau}} -e^{\frac{ln(2)\cdot t_2}{\tau}}) \text{ }\\ \hspace{55 mm} E = 2.224 \cdot 10^9 J\\\)

-----------

By reproducing this, it seems I’ve demonstrated two proofs. Q.E.D.



1) If you prefer the format in LaTeX, you can do it yourself. It has the same messiness but with a different font. For an example of true messiness, see my troll post for the “Answer Man,” aka Mr. BB.



2) You are an idiot on multiple levels! You’ve risk alienating the only person (in regular attendance) who can answer this type of question.  You are well too far on the wrong side of the education gulf to be this arrogant. If you continue, you will only ever earn a dimwit degree in Stupid.



Mr. BB has a dimwit degree in Stupid. He is about as educated as you are but he’s more arrogant. He uses his degree as a license to torture forum members with presentations so incompetent that it amuses my cat.  My cat likes him for some reason. I really don’t know why.indecision Maybe because he makes him laugh or maybe because my cat is a (Monopoly) banker and embezzler, or maybe it’s because he likes rodents. It’s probably all three.

Aug 19, 2017
 #2
avatar+130511
+4



Thanks, Melody.....here's another way that is non-trig based.....

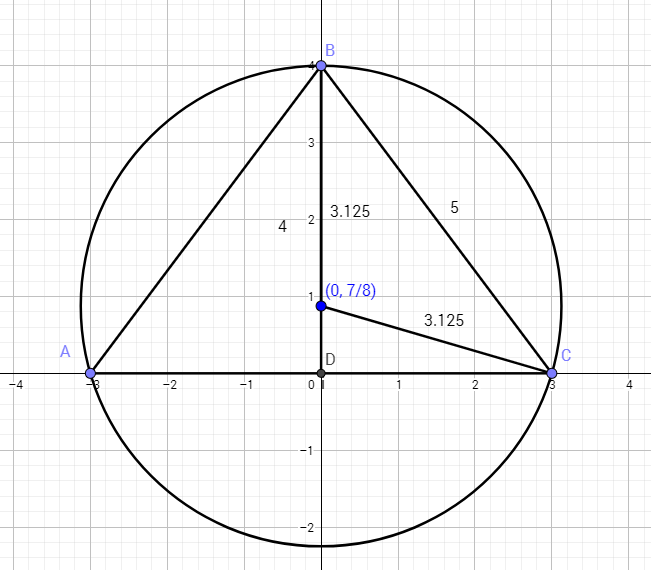

Look at the following image :







Let's forget about the circle for a moment -  we'll return to this in a second.....



Let us place the side with length 6 along the x axis such that its endpoints lie at (-3,0)  and (3,0)...let's label these as  A and C



Let the altitude of the triangle lie along the y axis......this will actually form two right triangles.....each with a hypotenuse of 5



So....using the Pythagorean Theorem the altitude of our triangle will be sqrt [ 5^2 - 3^2]  = sqrt [ 16]  = 4



And let us call the altitude BD



Now....the center of our circle will lie on  AD....and let us call this point (0, y)



And.......the radius of our circle will pass through all three vertex points of triangle ABC.....this means that the distance from (0, y) to B    will equal the distance from  (0,y)  to C...and  B has the coordinates (0, 4)  and C has the coordinates (3,0)



So...using the distance formula,  we have that



sqrt  [ ( 0 - 0)^2  + ( y - 4)^2 ]  = sqrt [ (0-3)^2 + (y - 0)^2]     squaring both sides and simplifying, we have that



(y - 4)^2  =  9 + y^2



y^2 - 8y +  16  = 9 + y^2       subtract y^2 from both sides



-8y + 16 =  9                       add 8y to both sides, subtract 9 from both sides



7  = 8y      divide both sides by 8



7/8  = y....  so the center of our circle will lie at (0, 7/8)



And the distance from this point to D  is the radius   =  4 - 7/8 =  32/8 - 7/8 =  25 / 8   = 3.125 =  3 + 1/8



And the equation of the circle will be  x^2 + (y - 7/8)^2  = (25/8)^2





cool cool cool
