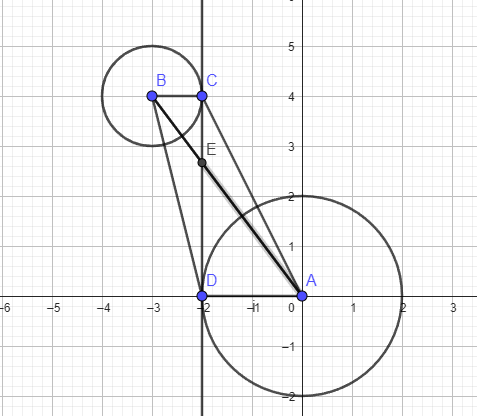

I have created a diagram, and I added a few points for convenience.



Notice that \(\overline{\rm BC} \perp \overleftrightarrow{\rm CD} \text{ and } \overline{\rm AD} \perp \overleftrightarrow{\rm CD}\) because of the Tangent Perpendicular to Radius Theroem. Since both segments are perpendicular to the same line, \(\overline{\rm AD} \parallel \overline{\rm BC}\). Quadrilateral ACBD has a pair of parallel sides and a pair of non-parallel sides, so this quadrilateral is classified as a trapezoid. The area formula for a trapezoid is \(A_{\text{trapezoid}} = \frac{1}{2}\left(b_1 + b_2\right)h \) where b1 and b2 are the lengths of each parallel side and h is the perpendicular distance between b1 and b2 of the trapezoid. I have constructed the diagram such that \(\overline{\rm CE} \parallel \overline{\rm AB}\). Now, pay close attention to \(\triangle {\rm EDC}\). This is a right triangle, so we can use Pythagorean's Theorem to find \(\rm CD\), which is the height of the trapezoid.



\({\rm CD}^2 + {\rm ED}^2 = {\rm EC}^2 \\ {\rm CD}^2 + (2 + 1)^2 = 6^2 \\ {\rm CD}^2 = 36 - 9 \\ {\rm CD}^2 = 27 \\ {\rm CD} = 3\sqrt{3} \text{ or } {\rm CD} = -3\sqrt{3}\)



Since we are dealing with lengths, we should reject \({\rm CD} = -3\sqrt{3}\). Now, we have all the ingredients to find the area of the trapezoid ACBD.



\(A_{\text{trapezoid}} = \frac{1}{2}\left(b_1 + b_2\right)h \\ A_{\text{trapezoid}} = \frac{1}{2}(2 + 1)*3\sqrt{3} \\ A_{\text{trapezoid}} = \frac{9\sqrt{3}}{2} \approx 7.7942 \)

.
