\(\text{Sketch the graph }\quad y= \frac{\pi}{2}\; sin^2x \quad \text{and use it to solve the equation }\quad2x=\pi\;sin^2x\)
I have been asked how to plot the original graph.

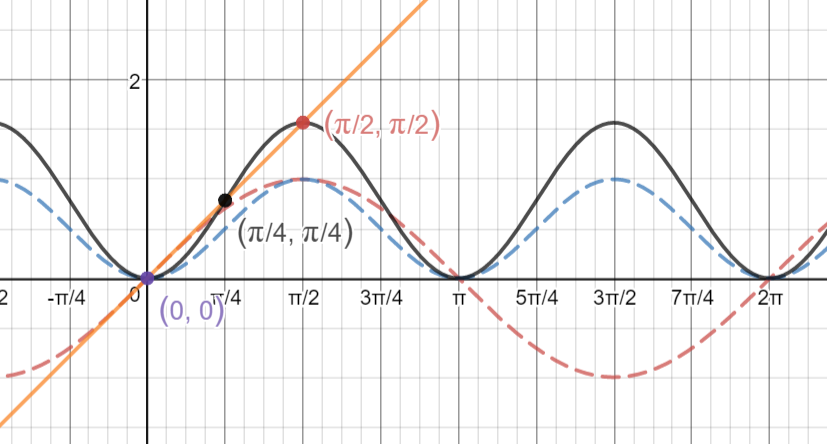

I would 'build' this graph. Starting with y=sinx
This has a period of 2pi and a amplitude of 1
x (radians) | 0 | pi/4 | pi/2 | pi | 3pi/2 | 2pi |
sin x | 0 | sqrt2/2=0.71 | 1 | 0 | -1 | 0 |
(sinx)^2 | 0 | 0.5 | 1 | 0 | 1 | 0 |
pi/2 (sinx)^2 | 0 | pi/4 | pi/2 | 0 | pi/2 | 0 |
So you can graph this.
\( \text{Not that }\quad2x=\pi\;sin^2x \quad \text{is the same as } x=\frac{\pi}{2}\;sin^2x\)

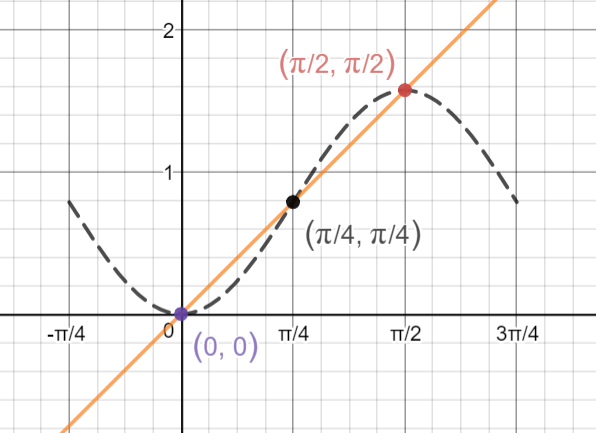

So you want the intersection of \(y=\frac{\pi}{2}\;sin^2x\) with \(y=x\)
Draw the sine graph and the graph of y=x and it is very easy to see where they intersect.
I hope that help
